Astro Haven Enterprises (AHE) introduces a new Optics Trailer

Imagine a mobile mount for your Telescope/Optics having the same robotic capability of your AHE dome at a fixed site:

  1. The ability to withstand high winds from any direction open, closed or closing;
  2. Peace of mind in heavy rain or snow;
  3. Totally remote operation with the same user interface;
  4. Closure in seconds.
  5. Now imaging taking this rig out on the highway in just a few minutes!

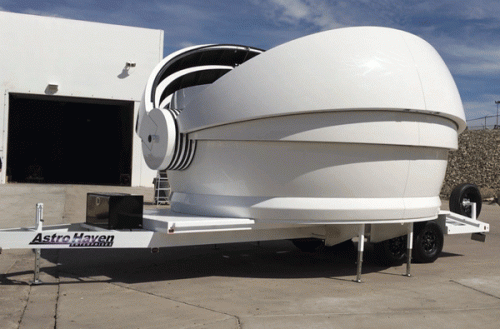

AHE has introduced a trailer that incorporates the best ideas for transporting an optical mount on unimproved roads and adds an AHE dome for environmental protection. The trailer will accommodate AHE domes up to 16 feet and is most suitable for the “X” models where all the shutters can be raised to vertical for travel on public roads. It has folding wings that support the fully deployed dome but the system can collapse to eight feet wide for highway or urban travel.

The fully deployed 12.5 or 16-foot AHE dome is too wide for public roads but with wide wheel stance and torsion/air-ride suspension you can transport an operational 16Dash1 or 16-X dome all over an unprepared range at moderate speeds. In addition to the silky suspension the tracking mount is also supported on shock mounts for transport. It features a pintle hitch for rough terrain but it can be towed with standard pickup and has a great turning radius. Onsite anchor the wings, hitch and stern and you are ready for any kind of wind. Collapse the dome, raise the wings and the highway awaits.

The trailer design incorporates a pedestal for the tracking mount that is lowered to the ground or fixed pier on cables so the telescope is isolated from the trailer when in operation. The cables and massiveness of the steel pedestal gave rise to the tongue-in-cheek name “Chandelier”. We tested a total load of 5500 lb. (i.e. the Chandelier and payload) but the components of the system are engineered to lift much more. The Chandelier is locked down on shock mounts and laterally stabilized for safe transport.


The videos below show both the 12.5 configuration and numerous trials with the 16Dash1 installed. The air ride and other features of the trailer are also shown.
The 12.5Dash1 on Optics Trailer
The Optics Trailer Features including air ride suspension
The 16Dash1 on Optics Trailer 1
The 16Dash1 on Optics Trailer 2
The Optics Trailer Stability tests with the 16Dash1 1
The Optics Trailer Stability tests with the 16Dash1 2
Optics Trailer Cornering and Speed tests 1
Optics Trailer Cornering and Speed tests 2
Optics Trailer Chandelier Lift 4000lb plus Chandelier
16Dash1 Shutter Attachment
